Features

Specifications

Thickness: 1.5mm、2mm、3mm、4mm

Area Per Roll: The Standard Is 10 Square Meters Per Roll

Construction Method: Cold Application

Basic Infomation

Place of Origin: CHINA

Brand Name: JOINSUN

Certification: GB18242-2008

Model Number: 1.5mm、2mm、3mm、4mm

Payment & Shipping Terms

Packaging Details: 30 rolls/pallet

Delivery Time: 5-8 weeks

Supply Ability: 50 million square meters per year

Gallery

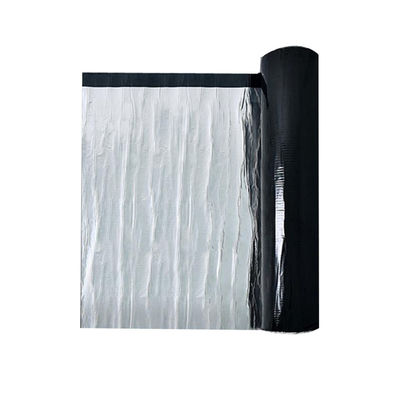

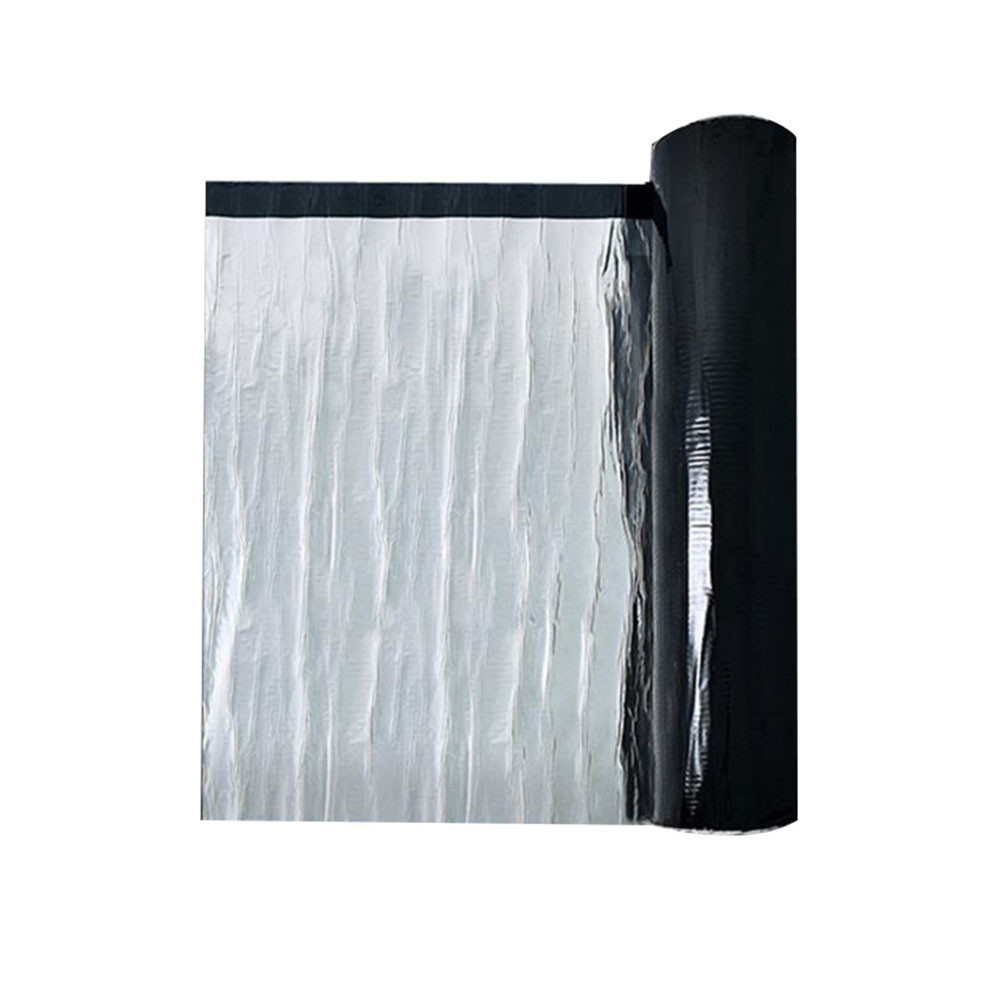

Self-Adhesive Polymer Modified Asphalt Waterproofing Membrane

Product Description

Product Overview

Name: Self-Adhesive Polymer Modified Asphalt Waterproofing Membrane
Brand: HEBEI JOINSUN CHEMICAL CO.,LTD
SKU: 1.5mm、2mm、3mm、4mm
Price: Negotiable USD
Availability: InStock

Self-adhesive polymer modified asphalt waterproofing membrane (hereinafter referred to as Type N) is made with synthetic rubbers such as SBS, high-quality road asphalt and tackifiers as the base materials. The upper surface materials are polyester film (PET), polyethylene film (PE), aluminum foil or silicone-coated release film, and the lower surface is covered with a silicone-coated release film as the anti-adhesive layer, thus forming a self-adhesive polymer modified asphalt waterproofing membrane without a base layer.

Self-adhesive polymer modified asphalt polyester-felt waterproofing membrane (hereinafter referred to as Type PY) takes the continuous filament polyester mat as the base layer, and the tackifying polymer modified asphalt as the impregnating and coating material. The surface is covered with polyethylene film, fine sand, shale, aluminum foil or a release film as the isolation layer, and the lower surface is covered with a silicone-coated release film as the anti-adhesive layer, thereby forming a self-adhesive polymer modified asphalt polyester-felt waterproofing membrane.

Product Feature

The special formula and unique manufacturing process make it have the characteristics of cold construction, no use of open flames, no use of adhesives, and no pollution to the environment.
Polyester felt has high tensile strength, high elongation, and strong adaptability to base shrinkage, cracking, and deformation.
Using SBS modified asphalt as coating material, it has good high and low temperature resistance and meets the needs of exposed waterproof layer.

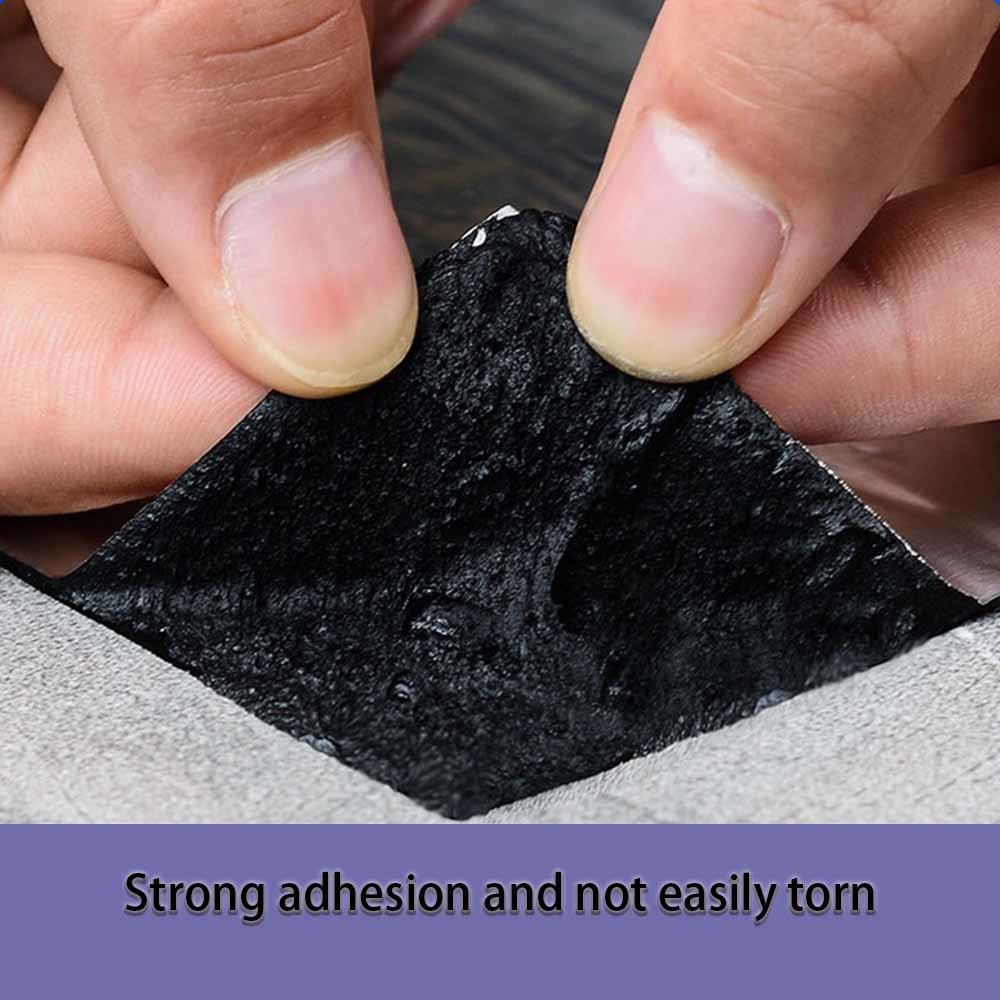

Good bonding performance, synchronized with the service life of the roll material and the self bonding of the roll joint.
The self-adhesive rubber asphalt on the lower surface of the coil is coated in regular strips to bond with the base layer, which has a unique function.
Form a steam exhaust channel to balance the steam pressure at the base layer and avoid bulging of the waterproof layer.
During shrinkage, cracking, and deformation of the base layer, it can avoid cracking caused by the "zero extension" phenomenon of the waterproof layer due to full adhesion between the waterproof layer and the base layer.

Self-Adhesive Polymer Modified Asphalt Waterproofing Membrane 1

Main physical and mechanical properties of Class N

S/N	PROJECT			INDEX
				PE		PET		D
				Ⅰ	Ⅱ	Ⅰ	Ⅱ
1	Tensile Property	Tensile force/(N/50MM) ≥		150	200	150	200	−−
		Elongation rate at maximum tension/% ≥		200		30		−−
		Asphalt fracture elongation rate/% ≥		250		150		450
		Phenomenon during stretching		During the stretching process, there is no asphalt coating or membrane splitting phenomenon before the membrane fractures.				−−
2	Tear strength of nail rod/N ≥			60	110	30	40	−−
3	Heat Resistance			Sliding at 70 ℃ not exceeding 2mm
4	Low temperature flexibility/℃			-20	-30	-20	-30	-20
				No cracks
5	Impermeability			0.2MPa, impermeable for 120min				−−
6	Peel strength/(N/mm)≥		coiled material and coiled material	1.0
			Coiled material and aluminum plate	1.5
7	Watertightness of nail rod			Pass through
8	Oil leakage/number of sheets ≤			2
9	Holding viscosity/min ≥			20
10	Thermal Ageing	Tensile retention rate/%>		80
		Elongation rate at maximum tension/% ≥		200		30		400
		Low temperature flexibility/℃		-18	-28	-18	-28	-18
				No cracks
		Peel strength coil and aluminum plate/(N/mm) ≥		1.5
11	Thermal stability	Appearance		No bulging, No wrinkling, No sliding, No flowing
		Size change/% ≤		2

Main physical and mechanical properties of Class PY

S/N	PROJECT			INDEX
				Ⅰ	Ⅱ
1	Soluble content (g/㎡) ≥	2.0mm		1300	− −
		3.0mm		2100
		4.0mm		2900
2	Tensile Property	Tensile strength (N/50mm) ≥	2.0mm	350	− −
			3.0mm	450	600
			4.0mm	450	800
		Elongation rate at maximum tension/% ≥		30	40
3	Heat Resistance			70 ℃ without sliding, flowing, or dripping
4	Low temperature flexibility/℃			-20. No cracks	-30. No cracks
5	Impermeability			0.3MPa, impermeable for 120min
6	Peel strength/(N/mm)≥	coiled material and coiled material		1.0
		Coiled material and aluminum plate		1.5
7	Watertightness of nail rod			Pass through
8	Oil leakage/number of sheets ≤			2
9	Holding viscosity/min ≥			15
10	Thermal Ageing	Elongation rate at maximum tension/% ≥		30	40
		Low temperature flexibility/℃		-18	-28
				No cracks
		Peel strength coil and aluminum plate/(N/mm) ≥		1.5
		Dimensional stability/% ≤		1.5	1.0
11	Self adhesive asphalt re stripping strength (N/mm) ≥			1.5

Application scope

Building roof waterproofing: Widely used in roof waterproofing projects of various industrial and civil buildings, including flat roofs and sloping roofs, etc., which can effectively prevent rainwater leakage and protect the internal structure of buildings.
Underground waterproofing projects: Applicable to waterproofing and moisture-proofing of underground projects such as basements, underground garages, and tunnels. It can resist the penetration of groundwater and ensure the dryness and safety of underground spaces.
Waterproofing of special parts: It can also be used in indoor spaces with waterproofing requirements such as bathrooms, showers, and kitchens, as well as waterproofing of hydraulic structures such as pools, swimming pools, and water towers. It can meet the waterproofing needs of different parts.
